How To Split Blogger Header into 3 Sections

Posted by Lasantha Bandara on July 3rd, 2009 File Under : change template, html12 Comments

1.Log in to your dashboard--> layout- -> Edit HTML

2.Don't click on "Expand Widget Templates"

3.Scroll down to where you see like this code:

#header {
margin: 5px;
border: 1px solid $bordercolor;
text-align: center;
color:$pagetitlecolor;
}

4.Now replace above code with below code :

#header {
float:left;
width:30%;
height:200px;
margin: 0px;
border: 0px solid $bordercolor;
text-align: center;
color:$pagetitlecolor;
}

#header2{float:left; width:30%; height:200px}

#header3{float:left; width:39%; height:200px}

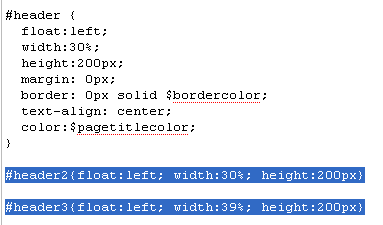

Look at the picture below.

Note : If you like you can change width,height,... as your choice.

5.Now again scroll down to where you see like this code:

<div id='header-wrapper'>
<b:section class='header' id='header' maxwidgets='1' showaddelement='no'>
<b:widget id='Header1' locked='true' title='YOUR-BLOG-TITLE (Header)' type='Header'/>
</b:section>
</div>

Remember that YOUR-BLOG-TITLE is your real blog title.Look at the example below.

6.Now replace this code with below code :

<div id='header-wrapper'>
<b:section class='header' id='header' maxwidgets='1' showaddelement='no'>
<b:widget id='Header1' locked='true' title='YOUR-BLOG-TITLE (Header)' type='Header'/>
</b:section>

<b:section class='header' id='header2' maxwidgets='4' showaddelement='yes'/>
<b:section class='header' id='header3' maxwidgets='4' showaddelement='yes'/>
<div style='clear:both;'/>
</div><!-- end header-wrapper -->

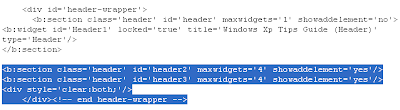

Look at the example below.

7.Now save your template and your done.It will look like this.

File Under : change template, html

Related Posts

12 Responses to “How To Split Blogger Header into 3 Sections”

  1. Learn about blogging here says:

    Why your blog not showing well in mozilla firefox?

    Do you know this my friend?

    Anyway...Great tutorial for beginners...keep doing it..

    Your best friend ramesh

  2. David Lee says:

    again, another great source of info here. i love this stuff...

    dave lee.

  3. Mohammad Faizal says:

    thanks for the tips & made it : ) however how to add another additional header above on it? thanks

  4. Blogger Tips And Tricks|Latest Tips For Bloggers says:

    To Mohammad Faizal,

    To Add nother Additional Section above you blogger header,

    1.Log in to your dashboard--> layout- -> Edit HTML

    2.Don't click on "Expand Widget Templates"

    3.Scroll down to where you see like this code:

    <div id='header-wrapper'>
    <b:section class='header' id='header' maxwidgets='1' showaddelement='no'>
    <b:widget id='Header1' locked='true' title='YOUR_BLOG_TITLE' type='Header'/>
    </b:section>
    </div>

    4.Now copy below code and paste it just before above code.

    <div id='crosscol-wrapper' style='text-align:center'>
    <b:section class='crosscol' id='crosscol2' showaddelement='yes'>
    <b:widget id='HTML184' locked='false' title='' type='HTML'/>
    </b:section>
    </div>

    Now save your template and you are done.

  5. Darkzi says:

    Very good tip, thank you very much!

    I have some questions for you...

    1) Your tip works well but I have a problem: I want to have 3 differents images at the top of my blog (as ads images with a different link for each image so) but the first one is shifted upside (actually it's the two others wich are shifted downside I think) and I would like to have them perfectly lined up, how could I do that please?
    I am under the "new version" of blogger, my main template is the "original" one and there is my html code (I put "_" at the beginning to make it more readable and "diiv" instead of "div" because your robot doesn't allow me to post this):
    ---------------------------------------------------------------------
    .header {
    __float: left;
    __width: 33%
    __margin: 0px;
    }

    .header2 {
    __float: left;
    __width: 33%
    }

    .header3 {
    __float: left;
    __width :33%;
    }
    --------------------------------------------------------------------
    __
    __
    ______

    ______

    ______

    __
    __
    __
    ---------------------------------------------------------------------
    I tried some stuffs like changing the value of "clear" but the three elements go on each other in a mess, I also tried to add some "top-padding" to the first header but it moves the 3 images and top-padding the other ones don't do anything...

    2) I would like these 3 images to be in a "top bar" wich would be as wide as possible (adjusting the screen width and not just shrink in the main page), is it possible?

    Of course if somebody has a better idea to solve my both problems in one time it will be perfect (like just putting an html widget but I don't know how to put 3 images with different links in there).
    My aim is quite simple: to have a full width top bar on my blog where I can easily put 3 different advertisement pictures...

    Thanks again for your terrific website and for your time.

  6. Darkzi says:

    As I can see now the html code didn't work so I put it again without the "<...>":

    __header
    __div class='header-wrapper
    ____b:section class='header' id='header' maxwidget='1' showaddelement='yes'
    b:widget id='Image3' locked='false' title='' type='Image'/
    /b:section
    ____b:section class='header' id='header2' maxwidgets='1' showaddelement='yes'
    b:widget id='Image1' locked='false' titles='' type='Image'/
    /b:section
    ____b:section class='header' id='header3' mawidgets='1' showaddelement='yes'
    b:widget id='Image2' locked='false' title='' type='Image'/
    /b:section
    __div style='clear:both;'/
    __/div
    __/header

  7. Mido says:

    thanks nice topic

  8. bhagwant says:

    Thanks a Lot. It helped me immensely

  9. Ayza2004 says:

    nice and usefull article..
    i'll apply it in my blog soon.
    thx.

  10. shivang2811 says:

    thnx Works Great on my site..
    http://fullgames2all.blogspot.com

  11. ceejay@ cheap cell phones says:

    this is working great on my blog!!!! thanks a lot, i have been looking for this code for a very long time now.

  12. MHFrough says:

    Sir These Codes Are Not In my site
